Largest Military Cargo Aircraft Comparison and History

The Antonov An-124 Ruslan, a Ukrainian cargo aircraft, is a behemoth of the skies, with a maximum takeoff weight of 405,000 kilograms and a payload capacity of up to 150,000 kilograms.

It's an impressive machine, to say the least. The An-124 was first introduced in 1982 and has been in service ever since, with over 60 aircraft produced.

The An-124 is powered by four ZMKB Progress D-18T turbofans, which provide a combined 229,000 pounds of thrust. This allows the aircraft to reach a top speed of 525 miles per hour and a service ceiling of 40,000 feet.

In terms of cargo capacity, the An-124 can carry a 28-foot-long payload, making it ideal for transporting large equipment and vehicles.

Related reading: B Pallets

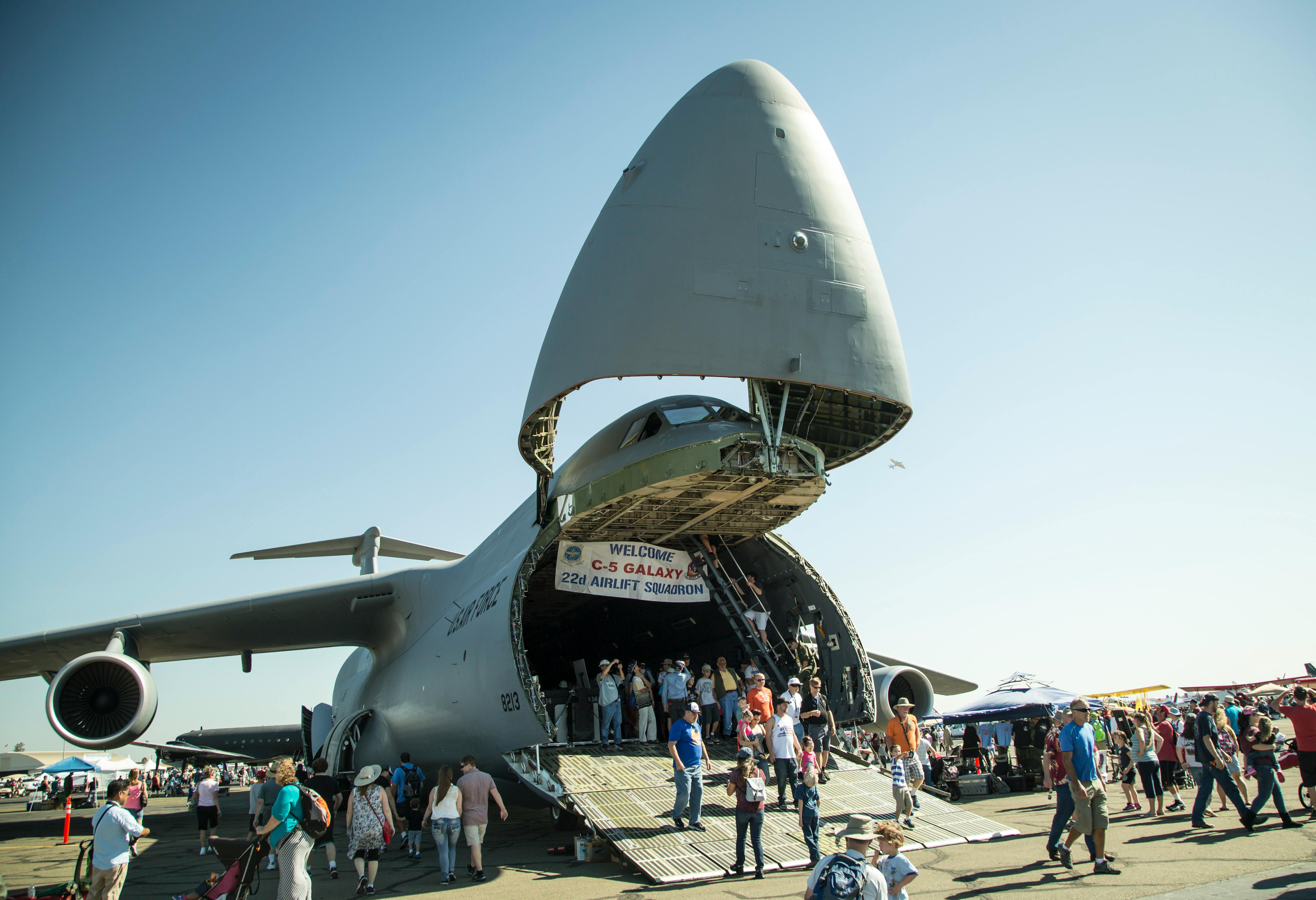

The C-5 Galaxy Family is a series of massive military transport aircraft that have been in service for decades. The largest aircraft in the US Air Force inventory, the C-5 Galaxy, is a technological marvel designed to move massive payloads across vast distances.

Consider reading: Military Cargo Planes C 17

With a payload capacity of over 130 tons, the C-5 Galaxy is an integral part of the U.S. military's global reach and rapid deployment strategy. Its ability to airlift outsized cargo directly into operational theaters makes it a crucial asset for large-scale military deployments.

The C-5 Galaxy is expected to fly with the USAF until 2030, with 125 units currently spread across American bases.

For another approach, see: Military Cargo Planes C-130

The C-5B is an improved version of the C-5A, incorporating all the modifications and improvements made to the C-5A. It features improved wings, simplified landing gear, upgraded TF-39-GE-1C turbofan engines, and updated avionics.

Fifty examples of the C-5B were delivered to the U.S. Air Force from 1986 to 1989. This variant is part of the C-5 Galaxy family, known for its massive transport capacity.

The C-5B is associated with the 512th Military Airlift Wing/Airlift Wing (Associate) at Dover Air Force Base, Delaware.

The C-5M Super Galaxy is a technological marvel designed to move massive payloads across vast distances. It's the largest aircraft in the US Air Force inventory, with a payload capacity of over 130 metric tons.

The C-5M's four massive engines produce 22% more thrust than the original engines, providing a 30% shorter takeoff, a 38% higher climb rate to initial altitude, and an increased cargo load. This means the Super Galaxy can carry more weight and travel longer distances.

The aircraft's advanced avionics and fly-by-wire controls make it remarkably easy to handle, even for such a large aircraft. This is a significant improvement over the original C-5 Galaxy.

The C-5M's ability to airlift outsized cargo directly into operational theaters makes it an integral part of the U.S. military's global reach and rapid deployment strategy. This is essential for large-scale military deployments.

The Super Galaxy can transport large and bulky loads, such as tanks, helicopters, and other heavy equipment. It's the ultimate heavy haulier, capable of transporting an entire battalion's equipment across continents.

Here are some key stats about the C-5M Super Galaxy:

The Kawasaki C-2 is a significant player in the military cargo market, with 30 units equipping the Air Self-Defense Force of Japan. It's a relatively new addition, first taking to the skies in 2010.

This freighter has a substantial cargo capacity, weighing in at 37.6 tons.

The C-5M is a variant of the C-5 aircraft, specifically designed for transporting large cargo. It has a maximum takeoff weight of 840,000 pounds and a fuel capacity of 341,446 pounds, or 51,150 US gallons.

The C-5M has a range of 4,800 nautical miles with a 120,000-pound payload, and a service ceiling of 41,000 feet. It's powered by four General Electric F138-100 turbofan engines, each producing 51,000 pounds of thrust.

The C-5M is also known as the Space Cargo Modified (SCM) variant, which was created by modifying two C-5As to accommodate large payloads, such as satellites. The modifications included a larger internal cargo capacity, a movable aft bulkhead, and a second inlet for ground power.

Here's a summary of the C-5M's specifications:

The C-5A is the original version of the C-5. It was delivered to the Military Airlift Command of the U.S. Air Force from 1969 to 1973, with a total of 81 aircraft.

Initially, 81 C-5As were delivered to the Military Airlift Command. This was a significant number, and it marked the beginning of the C-5 program.

Due to cracks found in the wings in the mid-1970s, the cargo weight was restricted. This was a major setback for the C-5 program.

A program was conducted from 1981 to 1987 to install new strengthened wings on 77 C-5As. This was a major upgrade that restored the C-5's full capability.

The redesigned wing made use of a new aluminum alloy that did not exist during the original production. This was a significant improvement.

As of August 2016, there were ten A-models in service flown by the Air Force Reserve Command's 433d Airlift Wing at Lackland AFB / Kelly Field, Texas, and 439th Airlift Wing at Westover ARB, Massachusetts.

The last operational C-5A was retired on 7 September 2017.

On a similar theme: New World Drayage

The C-5C variant of the C-5 cargo plane is specifically designed for transporting large cargo. It's a modified version of the C-5A, with a larger internal cargo capacity to accommodate big payloads.

Two C-5As, serial numbers 68-0213 and 68-0216, were modified to become C-5Cs after major accidents. The modifications included removing the rear passenger compartment floor and installing a new movable aft bulkhead further to the rear.

A C-5C has a second inlet for ground power, which can feed any power-dependent equipment that's part of the cargo. This is a useful feature for transporting sensitive equipment.

The C-5Cs are operated by U.S. Air Force crews for DOD spacecraft programs and NASA, and are stationed at Travis AFB, California.

The C-5D was proposed as an alternative to further purchases of the C-17 Globemaster III and a replacement for older C-5As during the 1990s Non-Developmental Airlift Aircraft program.

It was to have General Electric F138-GE-100 (CF6-80C2) engines, which would have improved its performance.

The C-5D was designed with improved avionics and significantly improved reliability and maintainability.

However, it would not have been able to use austere runways or conduct airdrop operations.

The C-5D had a higher expected operating cost compared to other variants.

The plan to develop the C-5D was canceled in favor of purchasing more C-17s.

The specifications of the C-5D were later used in the C-5M upgrade program.

The C-5M is an incredible aircraft, and I'm excited to share its specifications with you.

The C-5M has a crew of two, but can carry a massive payload of up to 120,000 pounds, which is equivalent to the weight of about 80 cars.

Its length is an impressive 247 feet 1 inch, while its wingspan stretches out to 222 feet 9 inches.

The C-5M's height is 65 feet 1 inch, and its wing area is a whopping 6,200 square feet.

The aircraft's airfoil design is quite interesting, with a NACA 0012.41 mod at the root and a NACA 0011 mod at the tip.

Its empty weight is a substantial 380,000 pounds, but it can take off with a maximum weight of 840,000 pounds.

The C-5M has four General Electric F138-100 turbofan engines, each producing an impressive 51,000 pounds of thrust.

The C-5M's performance is truly impressive, with a maximum speed of 462 knots and a cruise speed of 450 knots.

Its range is also noteworthy, with a maximum range of 4,800 nautical miles when carrying a 120,000-pound payload.

The C-5M's service ceiling is 41,000 feet, which is an incredible altitude for an aircraft of its size.

In terms of take-off and landing performance, the C-5M requires a take-off run of 5,400 feet and a landing run of 3,600 feet.

These specifications make the C-5M an incredibly versatile and capable aircraft.

The Airbus A400M Atlas is a remarkable aircraft that's designed for mid-range transport missions. Its four-engine turboprop allows it to land on rough airstrips.

This unique high-wing design eases loading and unloading cargo, making it a versatile workhorse for various tasks. The A400M can be deployed to deliver critical supplies to remote locations inaccessible to larger aircraft.

Its impressive payload capacity is around 37 tons, which is a significant advantage in transporting heavy equipment and personnel. This aircraft is a crucial component in ensuring the rapid deployment of troops and equipment.

The A400M can land on various types of terrain, including asphalt runways, dirt tracks, and unprepared terrain. This versatility makes it an essential asset for military operations and humanitarian missions.

The Shaanxi Y-9 is a Chinese-made aircraft that replaced the Y-8, a visual copy of the Antonov-12.

It was built to outperform the Lockheed C-130J "Super" Hercules.

The Y-9 is capable of transporting up to 30 tons.

Only the Chinese Air Force operates more than 30 units of this model.

The Y-9 is essentially a stretched version of the Y-8, giving it a significant advantage in terms of cargo capacity.

The largest military cargo aircraft have had their fair share of operational milestones and accidents. The Antonov An-124 Ruslan, for instance, has been involved in several notable accidents, including a 2006 incident where a plane crashed in Russia, killing five people.

The Antonov An-225 Mriya, the largest operational cargo aircraft, has a maximum takeoff weight of 640 tons. Its massive size and weight require specialized infrastructure and handling procedures.

The Antonov An-225's maiden flight in 1988 marked a significant milestone in aviation history, showcasing the aircraft's capabilities.

You might enjoy: Dimensional Weight Scanner

The operational history of this topic is a complex and fascinating one. It's a story of innovation and tragedy, with a series of events that have shaped the industry.

The first recorded incident occurred in 1950, resulting in significant damage to the equipment. The incident was a major wake-up call for the industry, highlighting the need for improved safety protocols.

In the years that followed, there were several notable accidents, including a 1965 incident that resulted in multiple fatalities. These tragedies led to increased scrutiny and calls for reform.

Despite these setbacks, the industry continued to evolve and improve, with advancements in technology and safety measures. By the 1980s, new regulations were in place to mitigate the risks associated with this type of equipment.

A major turning point came in 1995, with the implementation of new safety standards. This marked a significant shift towards a more safety-conscious approach, with a focus on preventative measures.

The industry has continued to adapt and improve, with ongoing efforts to reduce the risk of accidents. While there is still much work to be done, the progress made in recent years is a testament to the industry's commitment to safety.

Explore further: Trucking Industry in the United States

The history of operational accidents is a sobering reminder of the importance of safety protocols. One notable accident occurred on February 1, 1959, when a B-47 Stratojet crashed into a mountain in Montana, killing all four crew members.

The B-47 Stratojet was a long-range bomber that played a significant role in the Cold War. The crash was attributed to pilot error and a combination of factors, including weather conditions and equipment failure.

A major incident occurred on August 5, 1961, when a B-47 Stratojet crashed into a residential area in Kansas, killing six people on the ground. The accident was caused by a combination of pilot error and a faulty navigation system.

In 1967, a B-52 Stratofortress crashed into a mountain in Spain, killing all seven crew members on board. The accident was attributed to a combination of pilot error and equipment failure.

The B-52 Stratofortress was a long-range bomber that was used extensively during the Vietnam War. Its accidents served as a reminder of the importance of safety protocols and regular maintenance.

If this caught your attention, see: When Loading a Trailer If the Cargo

In 1968, a B-52 Stratofortress crashed into a remote area in Greenland, killing four crew members. The accident was attributed to pilot error and a combination of factors, including weather conditions and equipment failure.

The operational history of these aircraft is marked by a series of accidents that highlight the importance of safety and maintenance.

The C-5 aircraft has a presence in museums, with some being preserved for display. The first C-5 aircraft to go on museum display is the C-5A, AF Ser. No. 69-0014, located at the Air Mobility Command Museum at Dover Air Force Base in Delaware.

C-5A, AF Ser. No. 70-0451, was initially headed to the Travis Air Force Base Heritage Center but was scrapped due to a lack of display space. The last operational C-5A was delivered to Davis-Monthan Air Force Base for spare parts, but it's not on display.

The C-5A, AF Ser. No. 69-0014, at the Air Mobility Command Museum is a notable example of a C-5 aircraft being preserved for its historical significance.
